Rod Seals

Rod Seals are an imperative part of all Hydraulic and Pneumatic cylinder applications. They are made and designed to create a seal between the cylinder rod and the gland.

Rod Seals are used to maintain and regulate any kind of fluids that are present when the cylinder is in motion. They will prevent any kind of leakage or corrosion on the cylinder or other parts of the unit.

The application of the Rod Seal will affect what kind of material will be used. The most commonly used materials are Polyurethane (PUR), Nitrile Rubber (NBR) and Fluorocarbon (Viton/FKM).

Profiles

Hydraulic Single acting Asymmetrical lip seal

RS101

Single acting,

Asymmetrical lip

Hydraulic Single acting Symmetrical lip seal with O-ring energizer

RS105

Single acting,

Pneumatic application

RS109

Single acting,

PTFE O-ring energizer

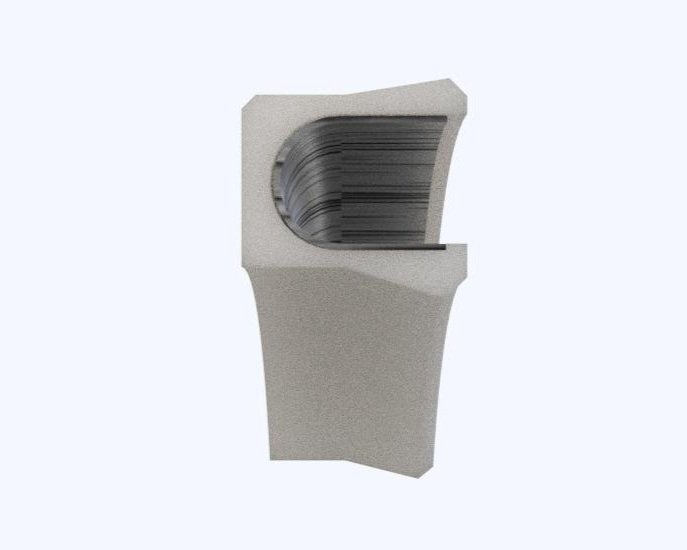

RS119

Single acting,

Spring energizer

RS125R

Single acting,

O-ring energizer, stabilizing lip and anti-extrusion ring

RS131

Double acting,

O-ring replacement in dynamic applications

Hydraulic Single acting Symmetrical lip seal
Hydraulic Single acting Asymmetrical lip seal with anti-extrusion ring

RS102R

Single acting,

Anti-extrusion ring

Hydraulic Single acting rod seal for pressure variation and high speed applications

RS106

Single acting,

Symmetrical lip, Rod/Piston application

Hydraulic Rod packing chevron set

RS110/111/112

Single acting,

Chevron seal

RS127

Single acting,

PTFE Chevron, spring preload required

RS138

Double acting,

PTFE with square elastomer energizer

Hydraulic Single acting Asymmetrical lip seal with O-ring energizer

RS103

Single acting,

O-ring energizer

Hydraulic Single acting rod seal with Anti-extrusion ring, for pressure variation and high speed applications

RS108R

Single acting,

Shallow groove stabilizing lip

and anti-extrusion ring

RS117R

Single acting,

With stabilizing lip and anti-extrusion ring

RS124

Double acting,

PTFE O-ring energizer

RS142

Double acting,

PTFE O-ring energizer, Delta seal

RS238

Single acting,

PTFE with square elastomer energizer

RS107

Single acting,

Symmetrical lip, O-ring energizer Rod/Piston Application

RS116

Single Acting,

Hat seal, Hydraulic and Pneumatic

RS120

Double acting,

Integrated backup rings

RS139

Single acting,

Distributor seal

RS205

Single acting,

Pneumatic U-seal

Hydraulic Single acting Asymmetrical lip seal with Anti-extrusion ring and O-ring energizer

RS104R

Single acting,

Anti-extrusion ring, O-ring energizer

Hydraulic Single acting rod seal with stabilizing lip, for pressure variation and high speed applications

RS108S

Single acting, Shallow

groove with stabilizing lip

RS118

Single acting,

Spring energizer

RS125

Single acting,

O-ring energizer and stabilizing lip

RS130

Double acting,

3 faced Quad ring

Pneumatic Single acting Asymmetrical lip seal

RS108

Single acting,

Shallow groove for high preload

RS117

Single acting,

With stabilizing lip

RS121

Single acting,

O-ring energizer suited

for highly viscous liquids

RS129

Single acting,

PTFE O-ring energizer

RS141

Single acting,

Shorter internal lip

RS216

Single Acting,

Hat seal, Hydraulic and Pneumatic
