RS103

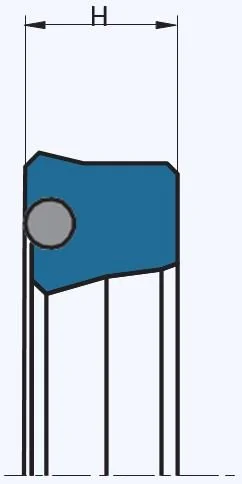

Technical drawing of a mechanical component with dimensions labeled, including sections of rounded and burr-free edges, with various measurements and angles indicated.

The dimensions s + c are dependent on the respective seal type.

O-Ring supported asymmetrical rod seal.
Tight fit on outside diameter for stable hold in housing design
Excellent sealing effect due to the design.
Main application in the short-stroke range.

Material and Application Parameters

  ²Pressure Values as a function of the hap dimension.
  The specified application parameters are generally valid values and must not be used simultaneously with the application.
  An order can be placed by specifying the profile type, material and specified housing design dimensions.

    Sealing Element
    Preload Element
    Temperature (°C)
    Max. Sliding Speed (m/s)
    Maximum Pressure²


    HPU Premium
    NBR 70
    -30
    -
    +100
    0.5
    400 bar (5800psi)


    HPU Diet
    NBR 70
    -20
    -
    +100
    0.5
    400 bar (5800psi)


    SLPU
     NBR 70
    -20
    -
    +100
    0.7
    400 bar (5800psi)


    HPU Low Temperature
     MVQ 70
    -50
    -
    +110
    0.5
    400 bar (5800psi)


Standard Dimensions

  ¹The specified extrusion gap is valid up to 70°C, higher temperatures requre lower values.


    Maximum radial extrusion gap s¹ (mm)


    Ød f8 (mm)
    ØD H10 (mm)
    L +0.2mm
    H (mm)
    C (mm)
bar
bar
bar
bar


    ≥5 - ≤25
    d + 8
30
10
50
33
18
10
05


    >25 - ≤50
    d + 10
00
80
00
37
23
15
10


    >50 - ≤150
    d + 15
00
70
00
46
33
25
18


    >150 - ≤300
    d + 20
00
60
00
54
38
33
25


    >300 - ≤500
    d + 25
00
50
50
61
45
40
33


    >500 - ≤600
    d + 30
00
30
00
67
50
45
40


    >600 - ≤1000
    d + 40
00
20
00
67
50
45
40


    >1000 - ≤1600
    d + 50
00
00
00
80
60
50
40


    >1600 - ≤2000
    d + 60
00
80
00
90
70
50
40


    >2000 - ≤2500
    d + 80
00
40
00
90
70
50
40


Surface Finish


    Roughness
    Rtmax(µm)
    Ra(µm)
    Material Portion


    Sliding Surface
    ≤ 2.5
    0.1 - 0.5
    Ratio contact area: 50 - 95% at a cutting depth of 0.5 x RZ starting from cref = 0%


    Groove Base
    ≤ 6.3
    ≤ 1.6


    Groove Flanks
    ≤ 15
    ≤ 3

Rod Seal, Single Acting, Hydraulics

Diagram comparing linear and static objects, with arrows indicating movement or lack of movement.

Brightened symbols: seal only for limited use.

Please contact us


    Design
    Application

Ød f8 (mm)	ØD H10 (mm)	L +0.2mm	H (mm)	C (mm)	20 bar	100 bar	200 bar	400 bar
					Maximum radial extrusion gap s¹ (mm)
≥5 - ≤25	d + 8	6.30	6.10	3.50	0.33	0.18	0.10	0.05
>25 - ≤50	d + 10	8.00	7.80	4.00	0.37	0.23	0.15	0.10
>50 - ≤150	d + 15	10.00	9.70	5.00	0.46	0.33	0.25	0.18
>150 - ≤300	d + 20	14.00	13.60	6.00	0.54	0.38	0.33	0.25
>300 - ≤500	d + 25	17.00	16.50	8.50	0.61	0.45	0.40	0.33
>500 - ≤600	d + 30	25.00	24.30	10.00	0.67	0.50	0.45	0.40
>600 - ≤1000	d + 40	32.00	31.20	13.00	0.67	0.50	0.45	0.40
>1000 - ≤1600	d + 50	40.00	39.00	15.00	0.80	0.60	0.50	0.40
>1600 - ≤2000	d + 60	47.00	45.80	18.00	0.90	0.70	0.50	0.40
>2000 - ≤2500	d + 80	62.00	60.40	20.00	0.90	0.70	0.50	0.40
